LoRa Antenna

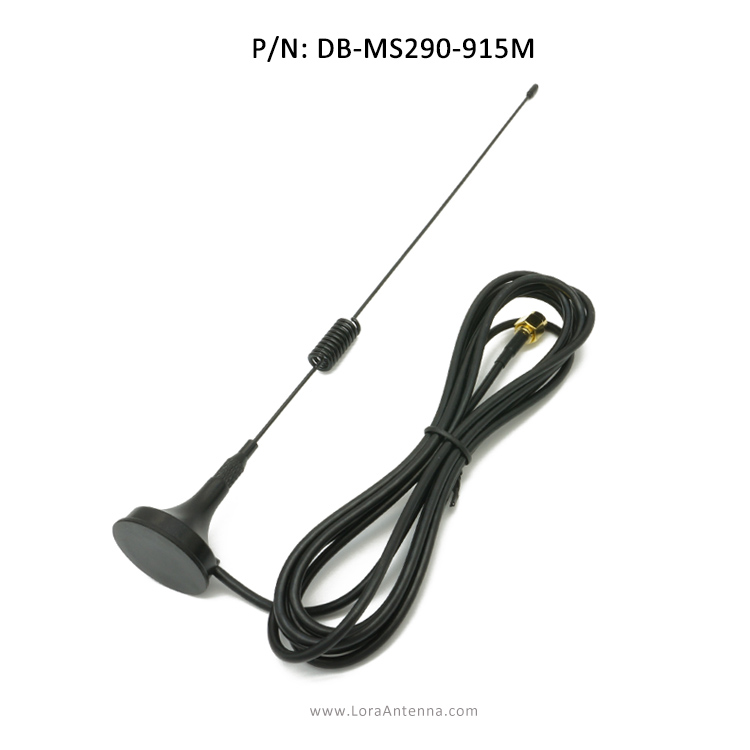

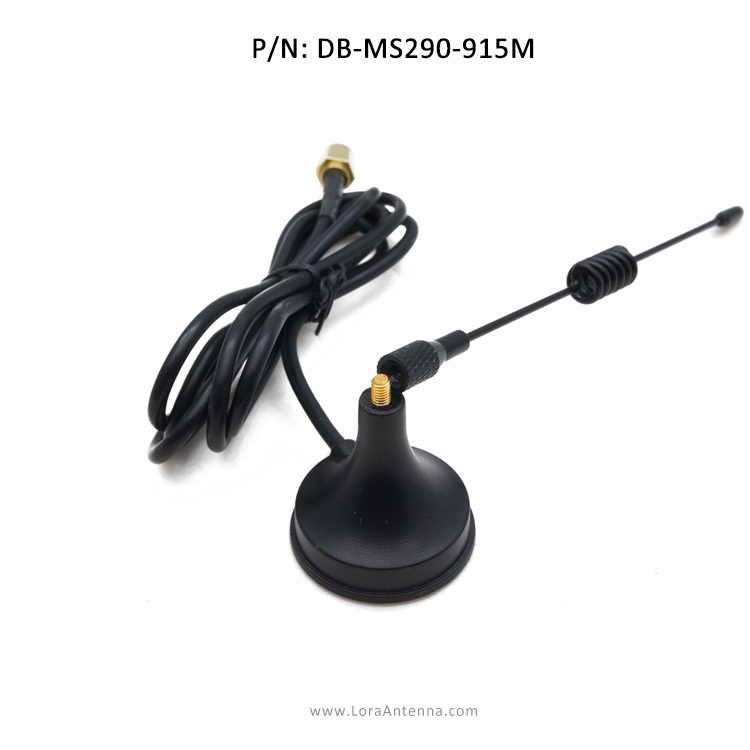

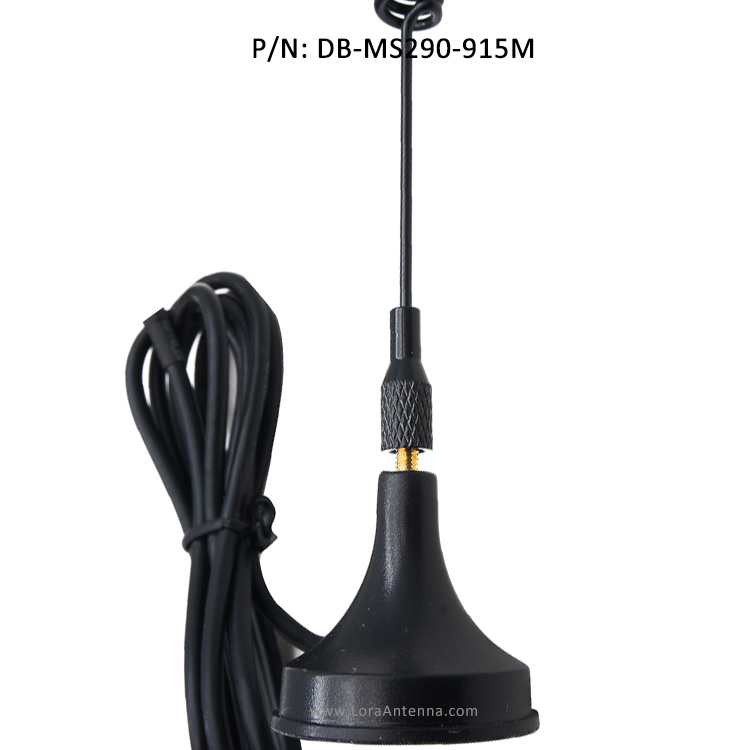

915mhz Lora Antenna DB-MS290-915M
Type: Magnetic Mounting 915MHz Lora Antenna
Part Number: DB-MS290-915M
Freq Range: 840-930MHz
Center Freq: 868MHz / 915MHz
Gain: 5 dBi
enquiry- Specifications
- Remark
Type: Magnetic Mounting 915MHz Lora Antenna
| Part Number: | DB-MS290-915M |
| Freq Range: | 840-930MHz |
| Center Freq: | 868MHz and 915MHz |
| Gain: | 5 dBi |
| VSWR: | <2.0 |
| Impedance: | 50 Ohm |
| Polarization: | Vertical |
| Radiation Pattern: | Omni-Directional |
| Max. Input Power: | 25 W |

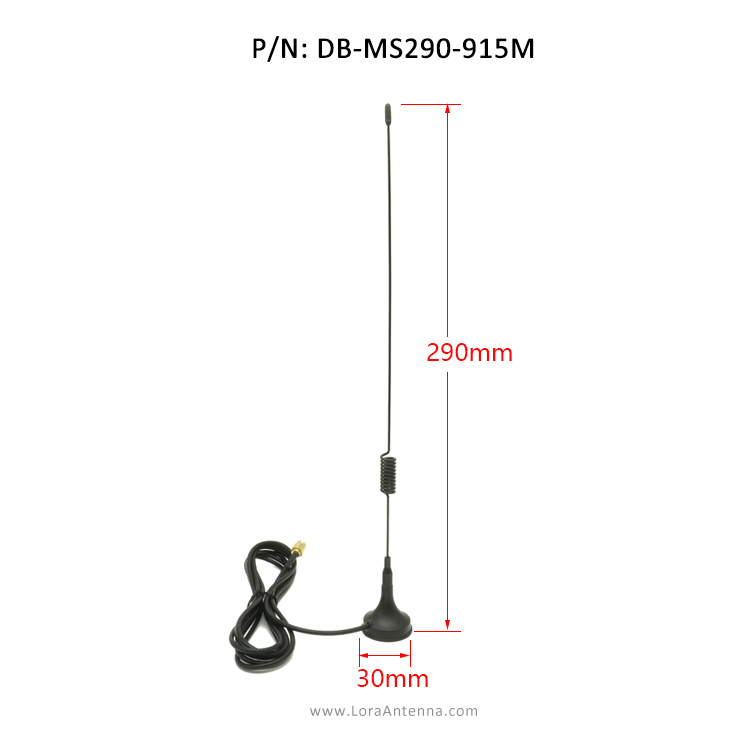

| Antenna Height: | 290mm |
| Base Diameter: | 30mm |
| Mounting Method: | Magnetic |
| Coaxial Cable Type: | RG174, RG316 optional |
| Cable Length : | 0.5 meter, 1 meter, 1.5 meter, 2 meter, 3 meter, 5 meter, 10 meter optional |
| Connector Type: | SMA-male, RP-SMA-male, MCX ,MMCX , N, M, F optional |
MOQ: 10 PCS
Inner Pack: Plastic bag
Outer pack: Carton
Payment: T/T, Paypal, WesternUnion
Delivery : 3- 5 working days
