LoRa Antenna

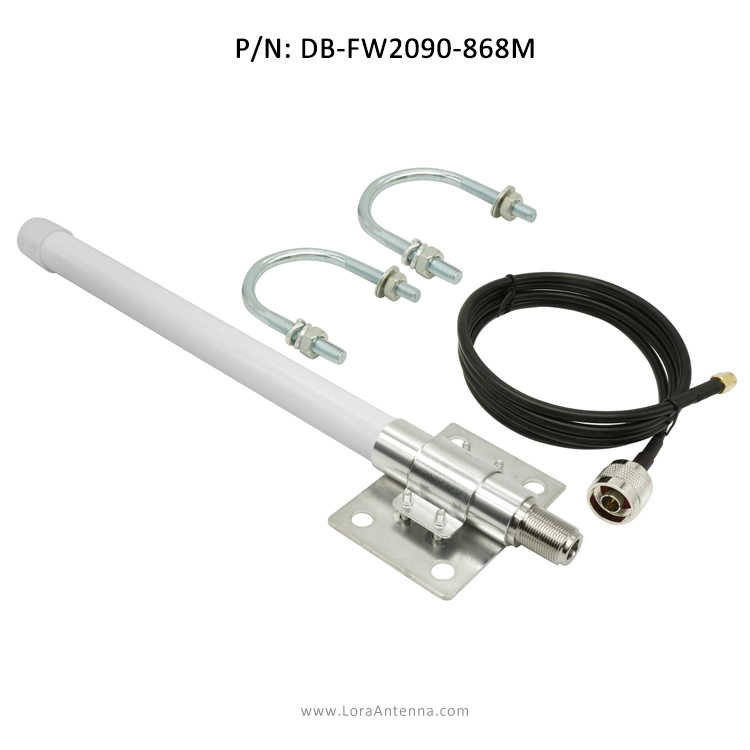

868mhz Lora 5.8dBi Fiberglass Antenna DB-FW2090-868M
Type: 868mhz Lora 5.8dBi Fiberglass Antenna
Part Number: DB-FW2090-868M
Freq Range: 858-878MHz
Center Freq: 868MHz
Gain: 5.8dBi
enquiry- Specifications
- Remark
Type: 868mhz Lora 5.8dBi Fiberglass Antenna DB-FW2090-868M
| Part Number: | DB-FW2090-868M |
| Freq Range: | 858-878MHz |
| Center Freq: | 868MHz |
| Gain: | 5.8dBi |
| VSWR: | <=1.5 |
| Impedance: | 50 Ohm |
| Polarization: | Vertical |
| Radiation Pattern: | Omni-Directional |
| Max. Input Power: | 50 W |

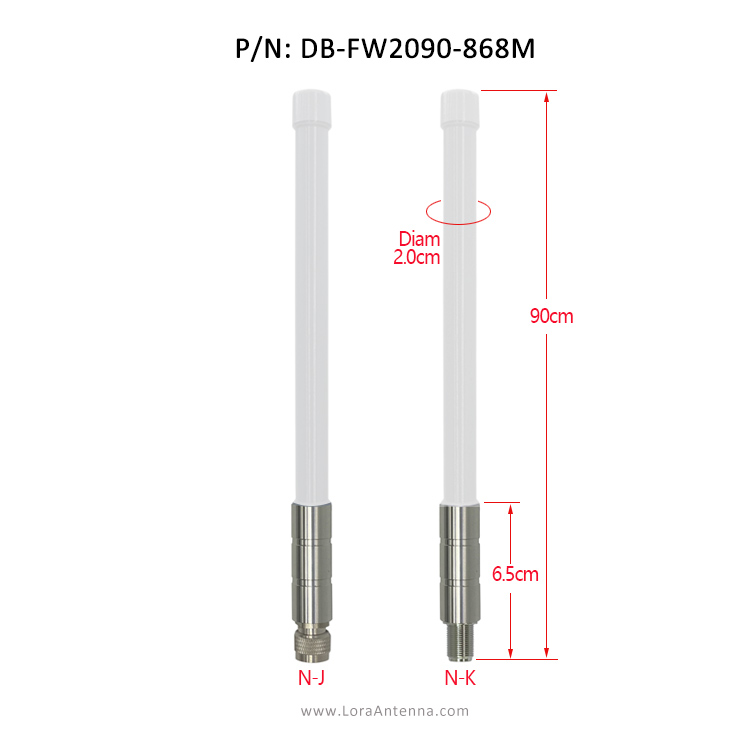

| Antenna Dimensions: | H900mm*D23mm |
| Mounting Method: | Bracket Mounting |
| Connector Type: | N-J, N-K optional |

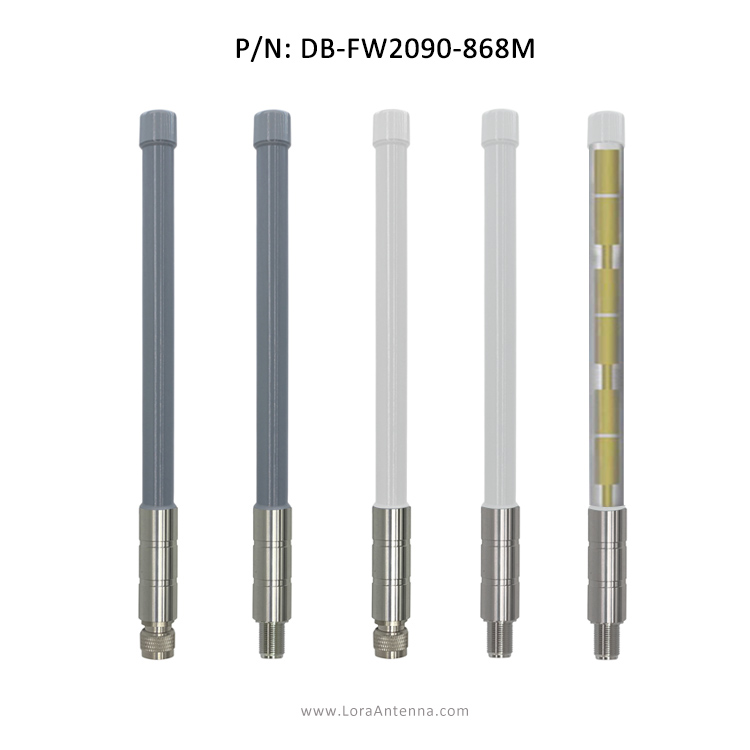

For White Color Fiberglass Tube:

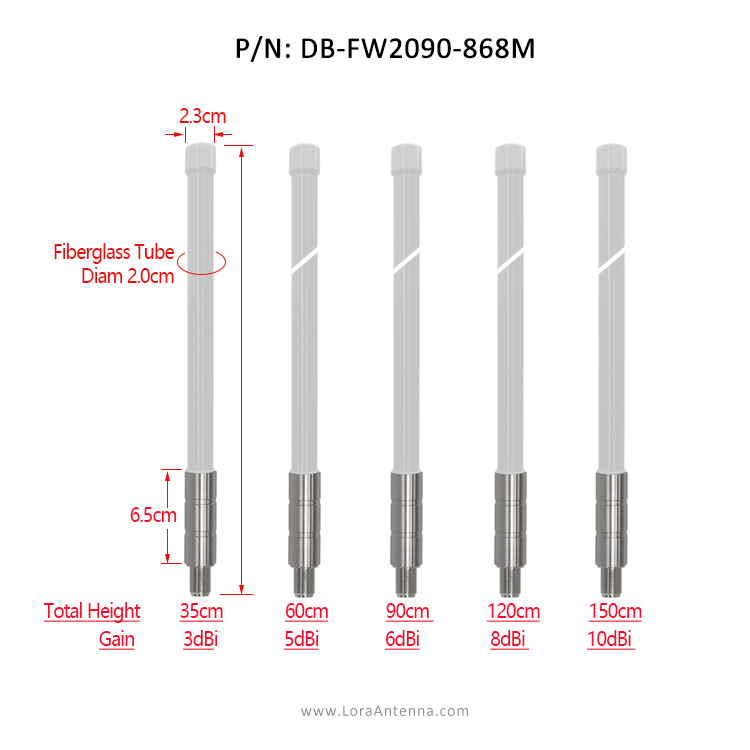

| Part Number | Antenna Height | Gain |
| DB-FW2035-868M | 35cm | 3dBi |
| DB-FW2060-868M | 60cm | 5dBi |
| DB-FW2090-868M | 90cm | 5.8dBi |
| DB-FW20120-868M | 120cm | 8dBi |
| DB-FW20150-868M | 150cm | 10dBi |
| DB-FW20180-868M | 180cm | 12dBi |
MOQ: 10 PCS
Inner Pack: Plastic bag
Outer pack: Carton
Payment: T/T, Paypal, WesternUnion
Delivery : 3- 5 working days
Lora 868MHz antenna
Enquiry Form ( we will get back you as soon as possible )
