LoRa Antenna

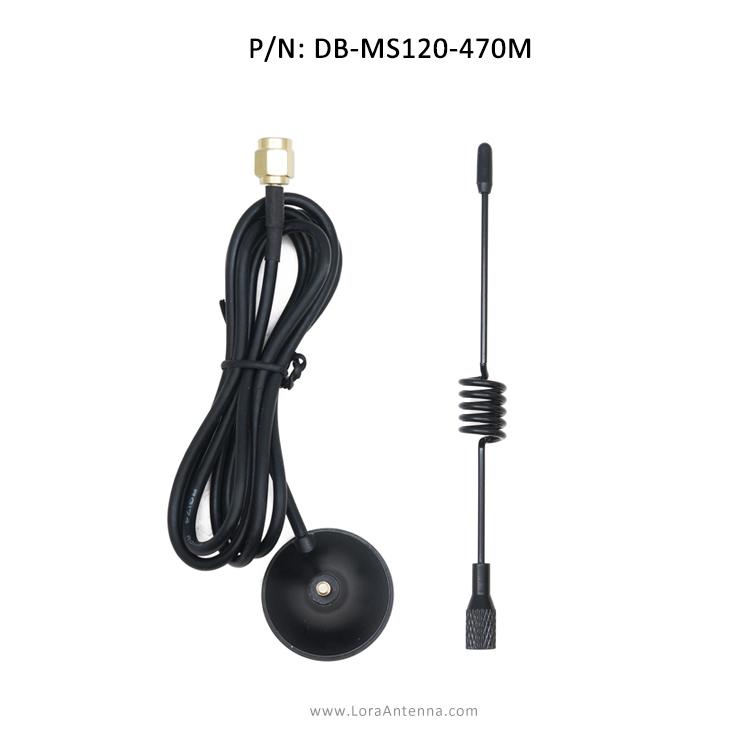

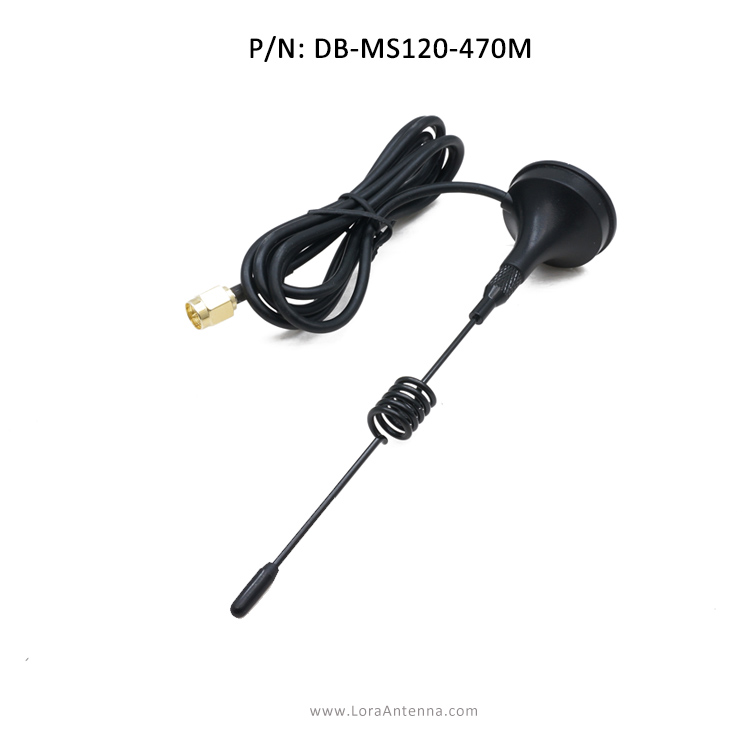

470mhz antenna DB-MS120-470M
Type: 470MHz Antenna
Part Number: DB-MS120-470M
Freq Range: 470-510MHz
Center Freq: 490MHz
Gain: 3dBi
enquiry- Specifications
- Remark
Type: Magnetic Mounting 470MHz Antenna
| Part Number: | DB-MS120-470M |
| Freq Range: | 470-510MHz |
| Center Freq: | 490MHz |
| Gain: | 3dBi |
| VSWR: | <2.0 |
| Impedance: | 50 Ohm |
| Polarization: | Vertical |
| Radiation Pattern: | Omni-Directional |
| Max. Input Power: | 25 W |

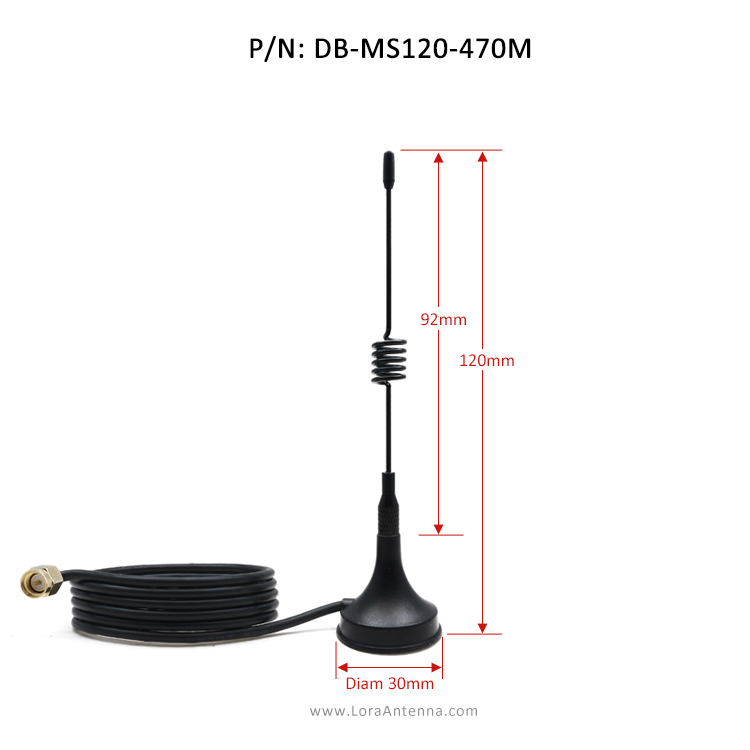

| Antenna Height: | 120mm |
| Base Diameter: | 30mm |
| Mounting Method: | Magnetic |
| Coaxial Cable Type: | RG174, RG316 optional |
| Cable Length : | 0.5 meter, 1 meter, 1.5 meter, 2 meter, 3 meter, 5 meter, 10 meter optional |
| Connector Type: | SMA-male, RP-SMA-male, MCX ,MMCX , N, M, F optional |
MOQ: 10 PCS
Inner Pack: Plastic bag
Outer pack: Carton
Payment: T/T, Paypal, WesternUnion
Delivery : 3- 5 working days
470MHz antenna
